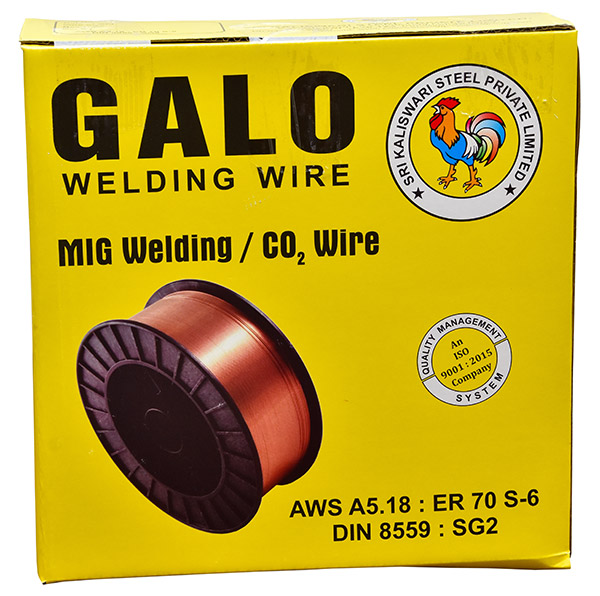

GALO WELDING - CO2/MIG WELDING

Stable arc & smooth ﬂow in all range of currents and in all positions of welding.
All position welding with minimum spatter under optimum welding conditions.
Uniform Copper Coating for excellent electrical contact and for corrosion resistance ensures friction free feeding in torches.
Produces excellent radiographic welds in M.S.,Low Carbon Steel of strength up to 55kg/mm2.
Suitable for CO2 & Argon/CO2 & Mix Shielding gases.
Available in both layer coil & random winding for 0.80MM, 1.00MM, 1.20MM & 1.60MM wires.

AWS A 5.18 : ER 70 S-6 IS : S4 - C 504

0.80mm, 1.00mm, 1.20mm & 1.60mm.

Domestic	Export
Supplied in DIN 280 & DIN 300 as spool. Weight 12.50kg/ 15 kg wire in a Spool . Spool packed in a shrink pack with vaccum pack. Spool packed in carton box.	80 carton box in a pallet (80 boxes X 12.5kgs = 1000kgs) Container Loadability = 23 tonnes

C	Mn	Si	S	P	Cu
0.07 – 0.15	1.40 – 1.85	0.80 – 15	0.035 Max	0.025 Max	0.50 Max

YS	UTS	Elongation	Impact Value (CVN)
470N/mm²	590 N/mm²	25%	27^oC – 150J -30^oC – 45J
